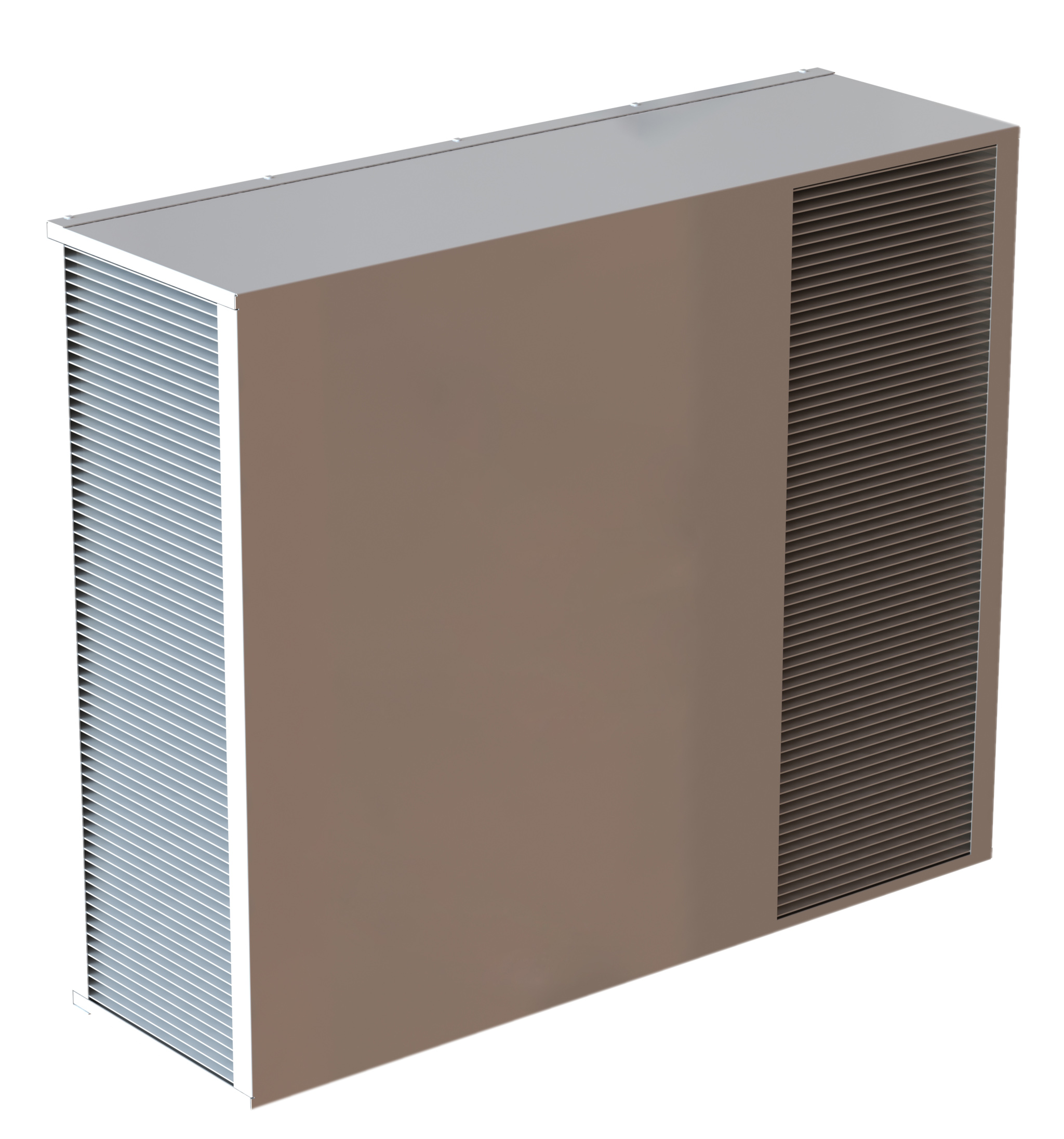

Counter Flow Air To Air Heat Exchanger

DescriptionTwo adjacent air flows are completely isolated, high corrosion-resistant heat exchange plates (aluminum, stainless steel) are used to realize energy transfer between different fluids. It is energy-saving ventilation in hospitals with high protection requirements, instrument cleaning and drying, low-grade air energy recovery in industrial processes, The best choice for heat pump drying and indirect evaporative cooling.


Applicationindustry manufacturing process & fresh air ventilation for all kind of buildings


Product Rangecould choose current product or OEM according to customer's requirement


Message
Product Introduction

Materials: Aluminium with epoxy coated.


Performance: highest heat transfer performance due to very thin aluminum layer and improved air turbulence with corrugated structure design.


Pressure drop: the special inlet and outlet air guide tunnel design minimize air pressure drop, that means you get more air cooling with same size fan.



Tightness: special process treatment to ensure the tightness between aluminum layers.



RoHS compliance: All components are RoHS compliant.


Reliability: robust design can ensure products last 20 years lifetime.


→ Fresh air make up Increasing amounts of fresh air ventilation are required to satisfy state and local building. Heating and cooling these large amounts of ventilation air can be extremely expensive and, in some cases cost prohibitive. Heat exchanger is the solution, bringing in the required amount of ventilation air at up to an 85% reduction in energy costs.


→ Process Heat Recovery Heat exchanger can be custom-built to fit almost any process application, recovering exhaust heat and saving valuable energy dollars. Optional materials and coatings are available for high temperature or corrosive environments.


Technique Feature

Ambient air passes through one side of an aluminum plate and contaminated air passes on the other side. Multiple plates are joined together in a special configuration to form the heat exchanger. Heated contaminated air flows through one set of air passages while the cold fresh air flows at a right angle through alternate, intervening passages. Heat is transferred from the contaminated air to the ambient air but the contamination remains in the contaminated air.

Technical parameters
